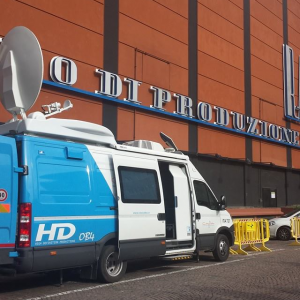

OB4 SNG old
OB4 is builded to make production and transmission on the same truck with on board generator. Dual Feed fully redundant, capable to manage 3 cameras, EVS, few external feeds and can also deliver 5.1 Dolby Surround sound.

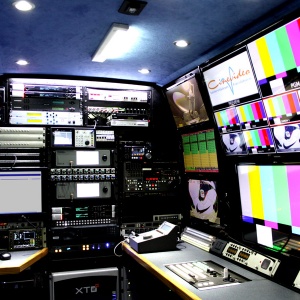

Production area
Monitorwall:
1 x 40″ LDC monitors with multiview
1 x 32″ LCD
6 x 21″ LCD
1×21″ JVC HD
Seating for 7 people
cameras
Up to 3 HD/SD Grass Valley LDK8000 Elite
Vision
40X40 Multiformat video router
HD instrument phabrix RX2000
Distribution, conversion & synchronising AXON Synapse
– VIDEO MIXER
JVK KMH300
2 DVX, 4 Ram recorder
RF
1.5 mt antenna
2 x redundant XICOM 400 Watt
4 x ERICSSON VOYAGER II Encoder MPEG2, MPEG4,
DVBS, DVBS-2, RASS/BISS ENCRIPTION
2 x ERICSSON 8200 receiver with RASS/BISS decription
KATHREIN self-seeking dish with multi satellite receiver

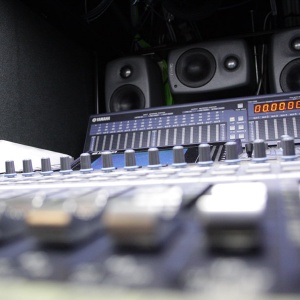

Audio
16 fader YAMAHA DM1000 with 48 input
Trilogy Orator 32 ports intercom system
AXON DOLBY E Encoders
AXON DOLBY E Decoders
AXON HEB900 embedders
Monitoring DOLBY DP570
Listening system by Genelec
ISDN Codec – GLENSOUND
2 x ELMAN GSM interface
2xTelephone Hybrid
-WIRELESS INTERCOM SYSTEM
Telex, Motorola basestation and Radios upon request
Vt & editing
1 EVS XT2 6 channels
Up to 2 VT recorders (XDCAM, HDCAM, P2,
DIGITAL BETACAM and more)
